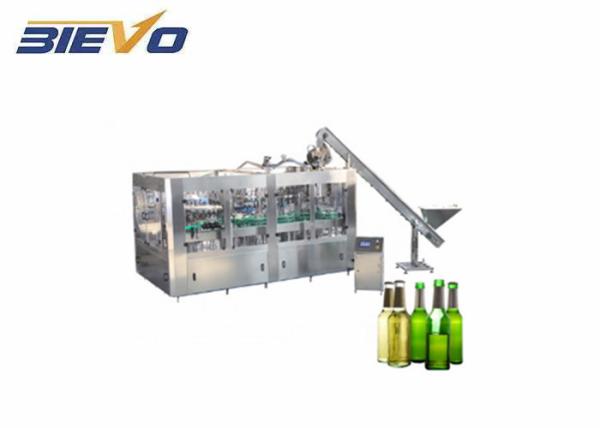

4000bph 500ml 18 Heads Carbonated Drink Bottling Machine In Sale
4000bph Full-Auto Carbonated Soft Drinking Liquid Bottle Filling
Capping Machine
Gas Energy Drink Machine Description
1) Rinser / filler / capper monobloc
2) Bottle material: PET, glass, metal
3) Bottle volume: 150ml - 2.5L
4) Production capacity: 50 - 22,000bottles/h
5) Can design according to customers' demands
6) We can supply filling line solution and filling machines for
soft drinks (carbonated drinks)
| Technical Parameters Of Auto Carbonated Soda Water Filling Machine
: |
Model (BCGF) | 18/18/6 | 24/24/6 | 32/32/8 | 40/40/12 | 50/50/12 |
Washing heads | 18 | 24 | 32 | 40 | 50 |
Filling heads | 18 | 24 | 32 | 40 | 50 |
Capping heads | 6 | 6 | 8 | 12 | 12 |
Capacity (BPH) | 3500 | 5000 | 8000 | 12000 | 16000 |
Power(kw) | 3.5 | 4.5 | 6 | 7.5 | 9.5 |
Dimension (mm) | 2600*1920 | 3100*2300 | 3800*2500 | 4600*2800 | 5450*3300 |
| *2550 | *2800 | *2900 | *2900 | *2900 |
Weight(kg) | 3500 | 4500 | 5600 | 8500 | 9800 |
Machines Details Of Automatic Carbonated Soda Water Filling
Machine:
3 IN 1 Carbonated Soft Drinks Filling Machine
Out Look:
> 304 stainless steel frame
> Tempering Glass window, Clear & no odor
> Excellent start wheel design, easy change over parts
> Machine Base with anti-rust process, ensure the forever
antirust
> All seal where liquid may Leakage & base neck come with
rubber, water proof
> Manual lubrication system
Washing Part:
<1>Rinsing water distributor ensure each working position has
stable water supply, as well as cut the rinsing water consumption.
<2>Single fluid spray nozzle is used, rinser water is
spraying in setting angle, and clean all parts inside of bottle
with features complete rinsing and water saving. Water rinsing time
is 4 seconds and dripping water is 2 seconds;
Filling Part :
<1>Material of filling valve and tank are made from stainless
steel 304L.
<2>High speed and precision filling technology, filling flow
rate is 35% higher than Newamstar's second generation filling
technology (reaches to 200ml/s), liquid level precision ≤±2mm;.
<3>Circline liquid tank, the liquid level is controlled by
floating ball.
Capping Part :
Capping Part
<1>High speed and high precision capping technology and
ensure capping inferior ≤0.2%.
<2>Capping air tightness ≥ 99.99%
<3>Adopted in constant magnetic torque capping technology.
capping effect is stable and reliable.
<4>The anti-rotation blade is made by chrome material, no
rust and wearable.
Zhangjiagang City Bievo Machinery Co., Ltd. is located in a
national level development zone - Zhangjiagang Economic And
Technology Development Zone, covering area more than 8,000 square
meters.We enjoy convenient transportation with Shanghai Hongqiao
International Airport and Shanghai Pudong International Airport on
hand.Which accumulated a great number of China's top technologists
in the liquid beverage industry.We have complete system from
designing, manufacturing, installation, training to after
service.Our main product water production line, carbonated beverage
production line . Fruit juice and milk production line ,3 to 5
gallons production line, daily chemical production line and so
on.Plat and tube UHT device, CIP system.All the products are sold
well.We devote ourselves to the development, research and
production of liquid food and beverage filling and packing industry
.
After-sales service:
We guarantee the quality of the main parts within 12 months.
If the main parts go wrong without artificial factors within one
year, we will freely provide them or maintain them for you.
After one year, if you need to change parts, we will kindly provide
you with the best price or maintain it in your site.
Whenever you have technical question in using it, we will freely do
our best to support you.
Installation:
The seller would dispatch his engineers to instruct the
installation.
Cost would be bear on buyer’s side (round way flight tickets,
accommodation fees in buyer country).
